Ribtype & Corrugated Roofing System
Longspan Roofing is a high-quality, durable roofing solution designed for long-term protection and modern appeal. Made from strong, weather-resistant materials, it provides excellent strength against heat, rain, and harsh conditions while maintaining a sleek, attractive finish—perfect for residential, commercial, and industrial buildings.
RIBTYPE & CORRUGATED ROOFING SYSTEM – FULL PRODUCT DESCRIPTION

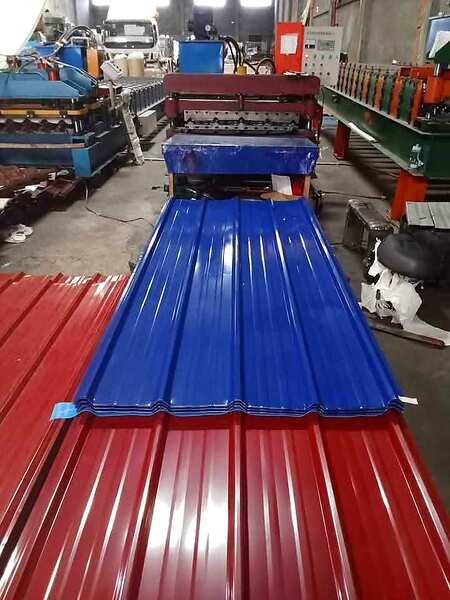

Ribtype and Corrugated Roofing System is a durable, lightweight, and cost-efficient metal roofing solution designed for residential, commercial, and industrial applications. It is manufactured from high-quality pre-painted galvanized steel sheets with protective zinc coating to minimize premature rusting and ensure long-term corrosion resistance, especially in tropical and coastal environments.
The roofing sheets have an effective width of 1.07 meters and are factory-coated with a 15–20 microns top coat paint, 5–8 microns primer coat, and 8 microns back coat, providing superior protection against UV exposure, oxidation, and environmental deterioration. The ribbed and corrugated profiles enhance structural rigidity, improve water runoff efficiency, and ensure leak-resistant performance.
Available thickness options include 0.35mm, 0.40mm Commercial, 0.40mm Standard, 0.50mm, and 0.60mm, allowing flexibility depending on structural requirements and project specifications.
This roofing system is installed using appropriate fasteners, sealants, and accessories to ensure proper alignment, secure anchorage, and watertight installation. It offers excellent durability, low maintenance, and a service life of 15–25 years under normal environmental conditions.
Suitable for residential houses, warehouses, commercial buildings, industrial facilities, and various roofing applications requiring reliable and economical roofing protection.
TYPES:

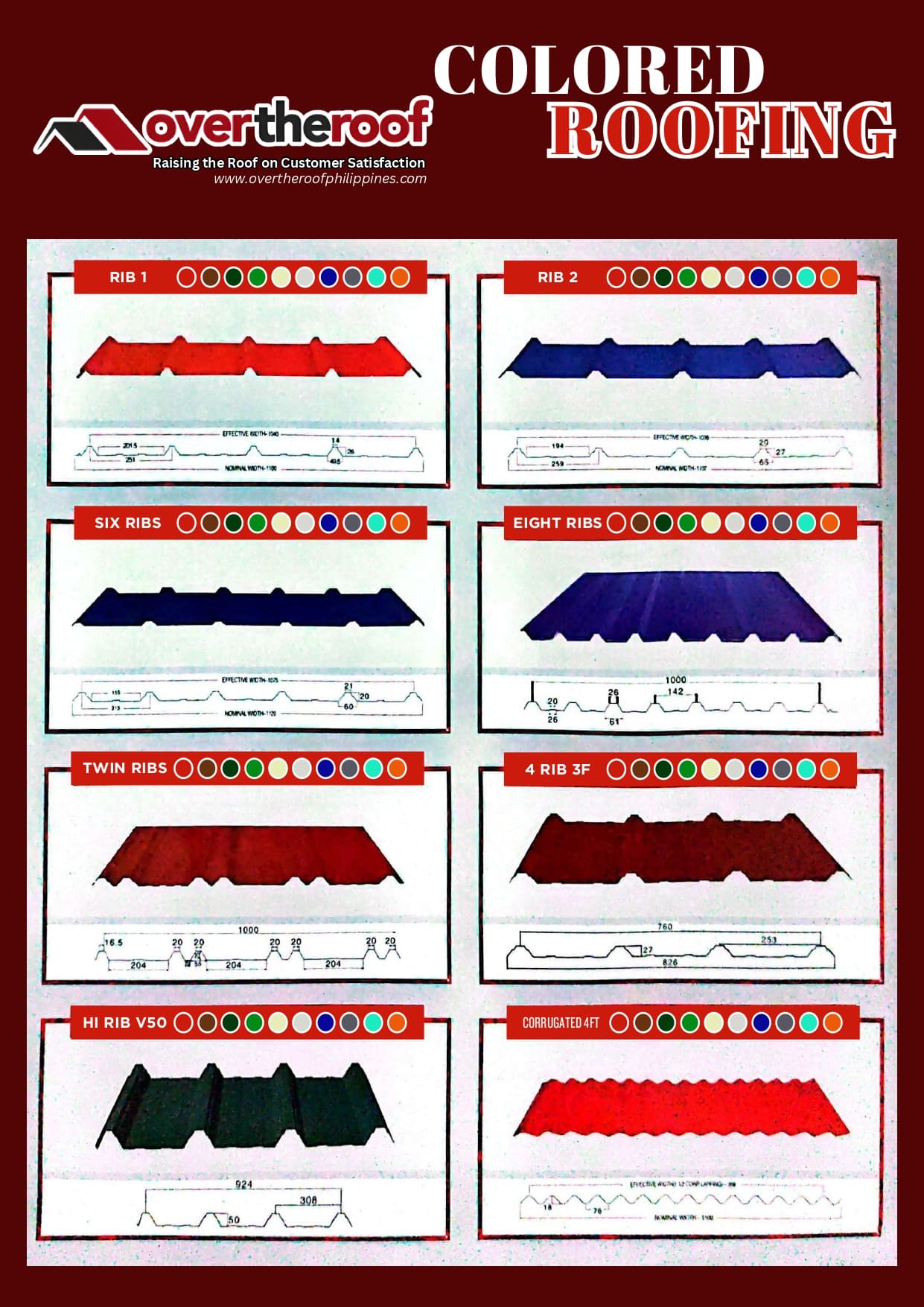

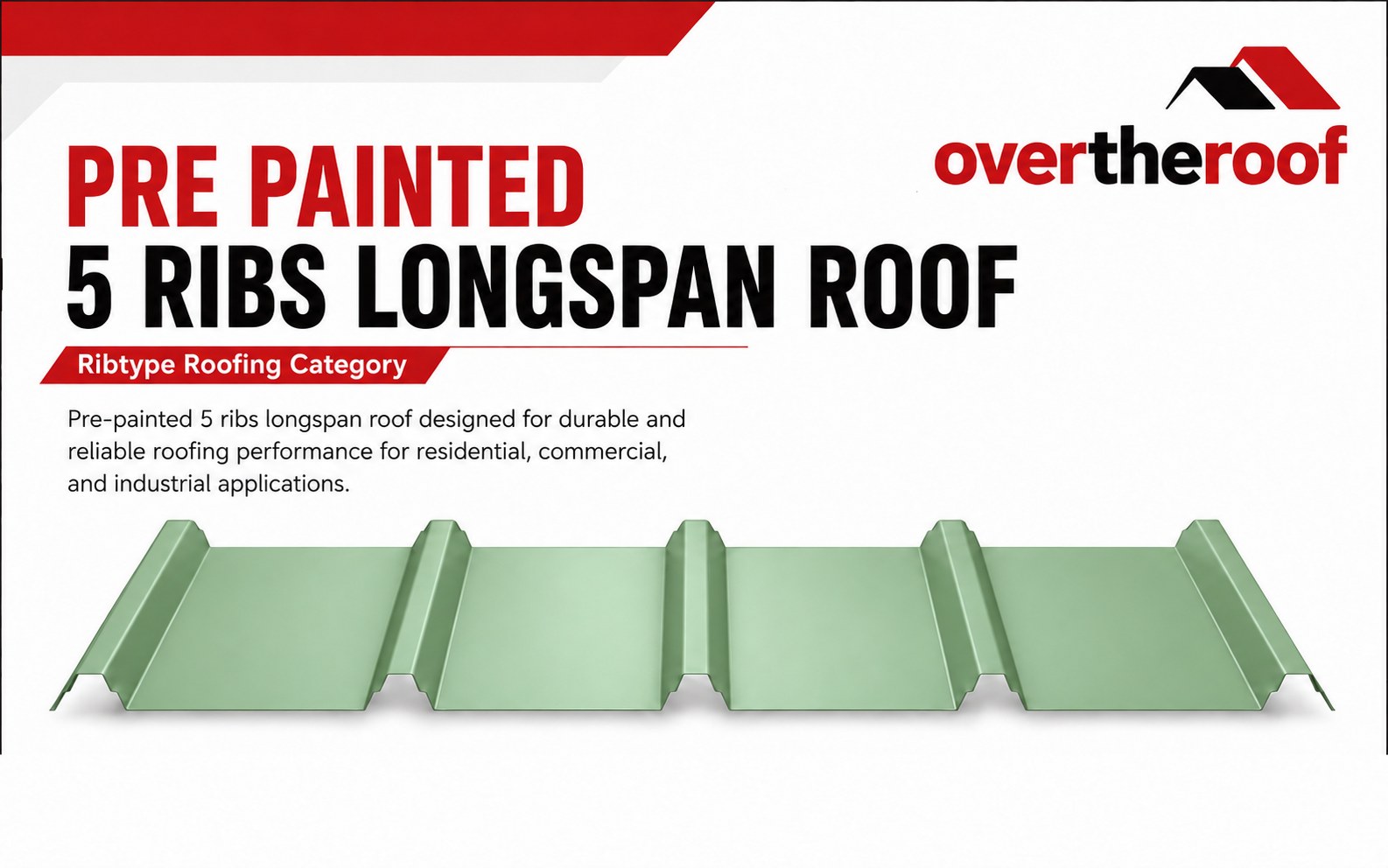

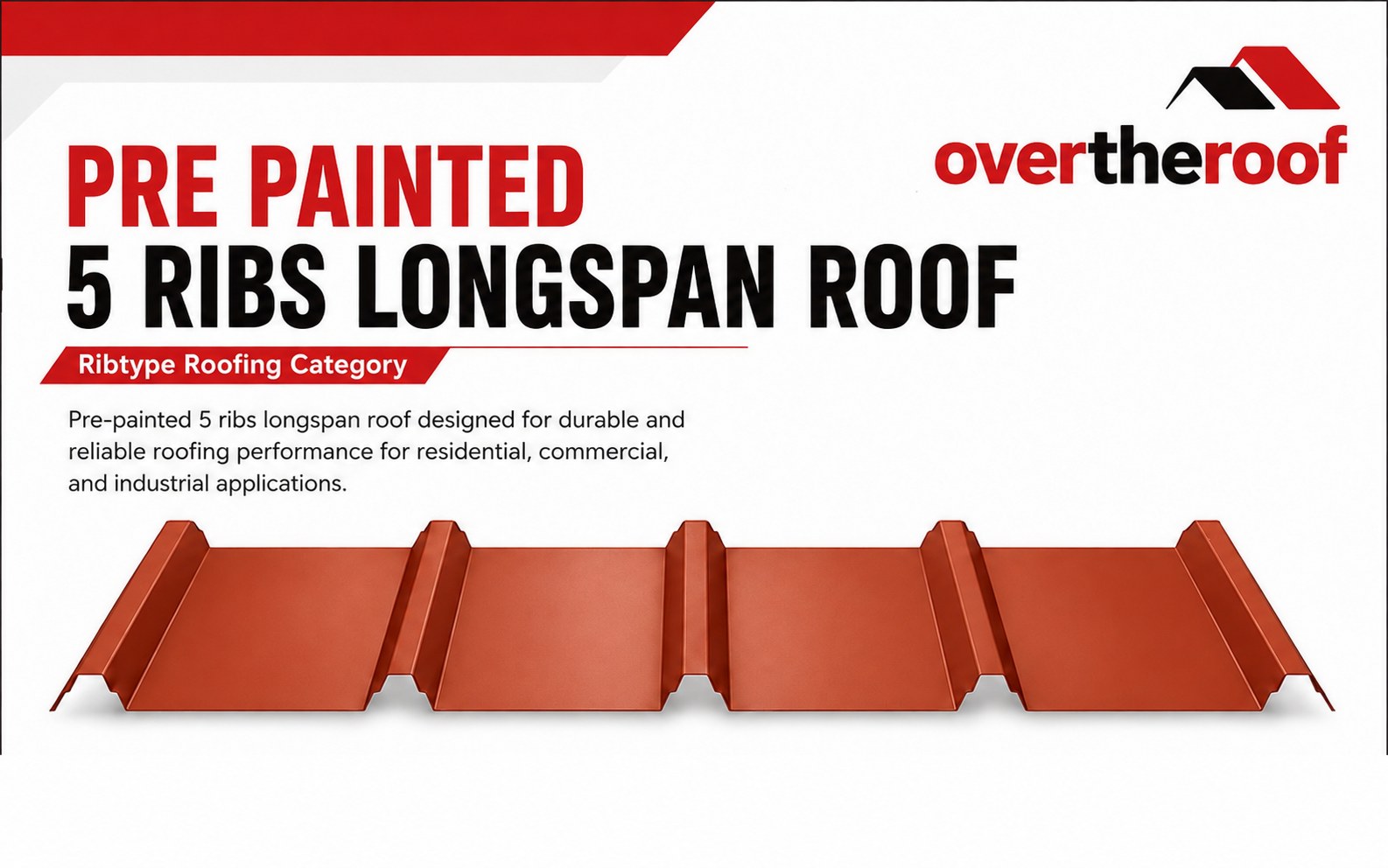

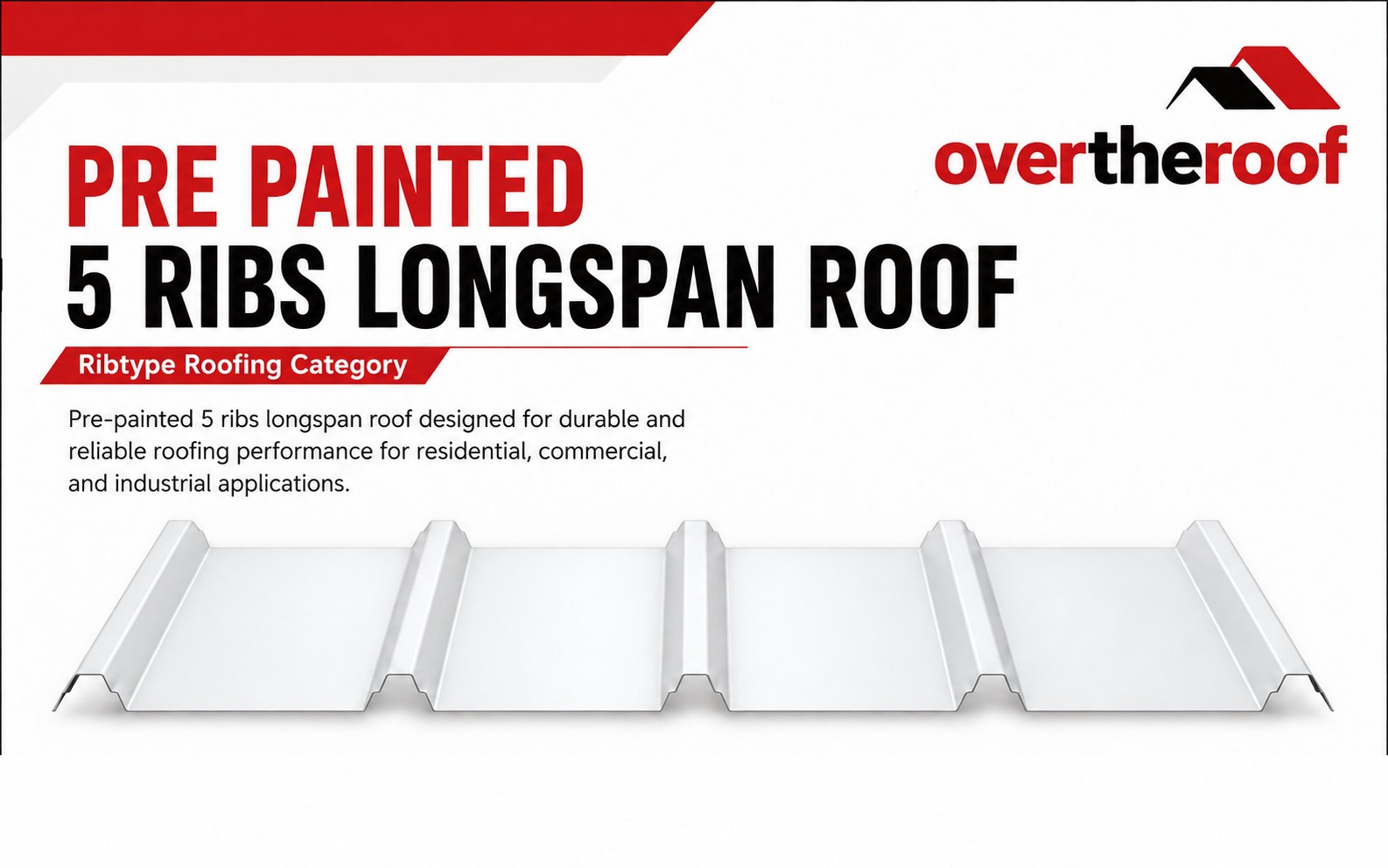

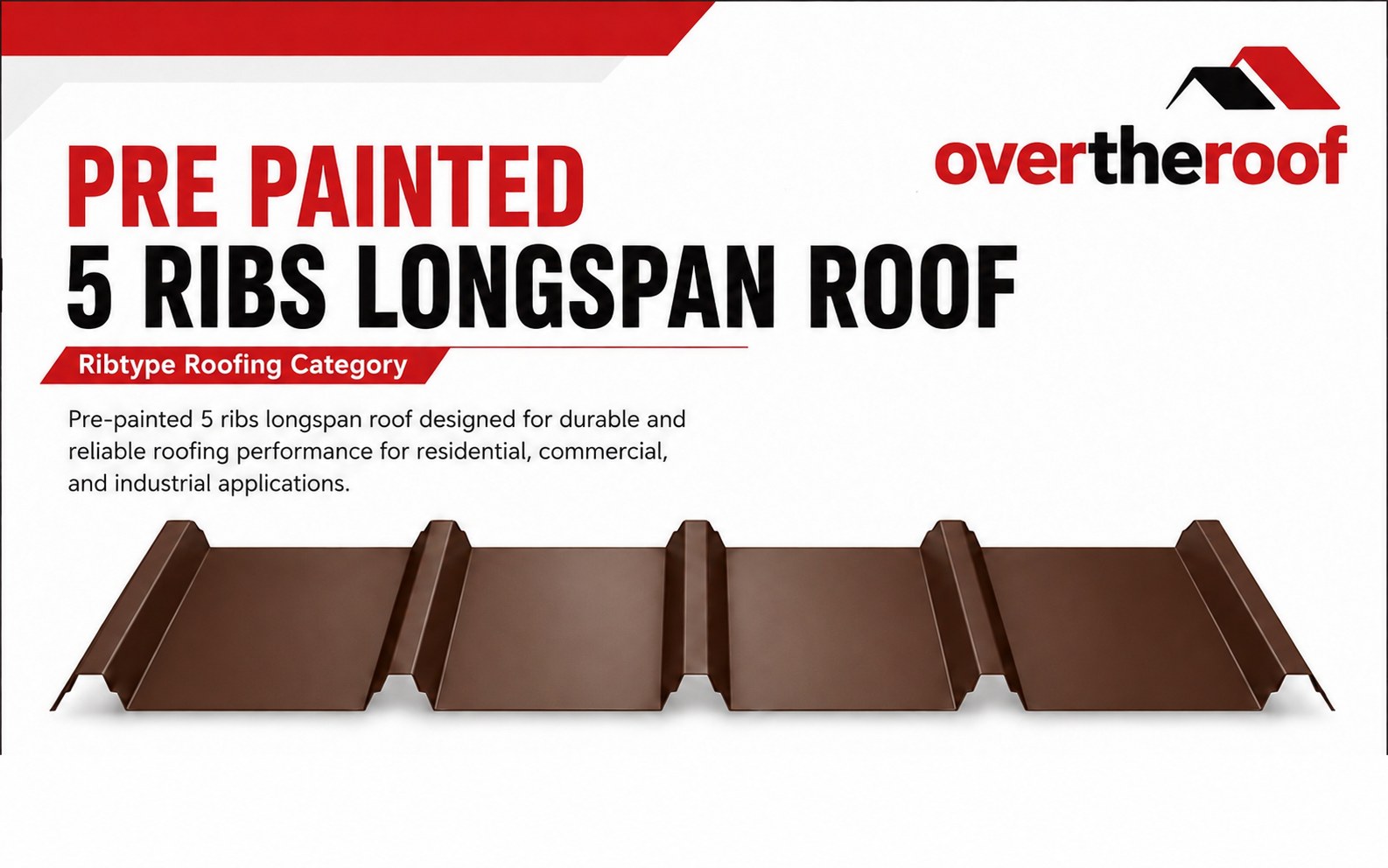

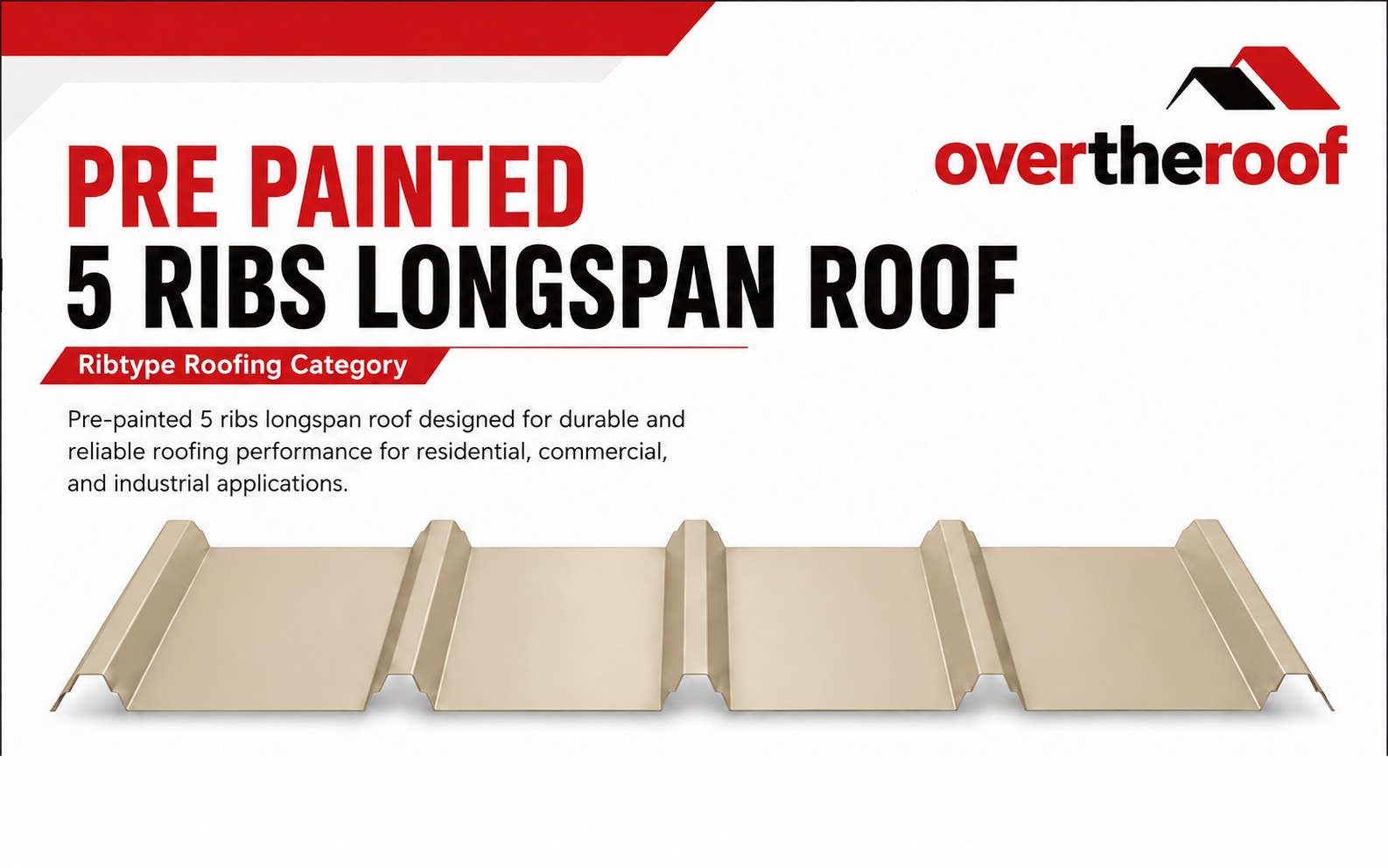

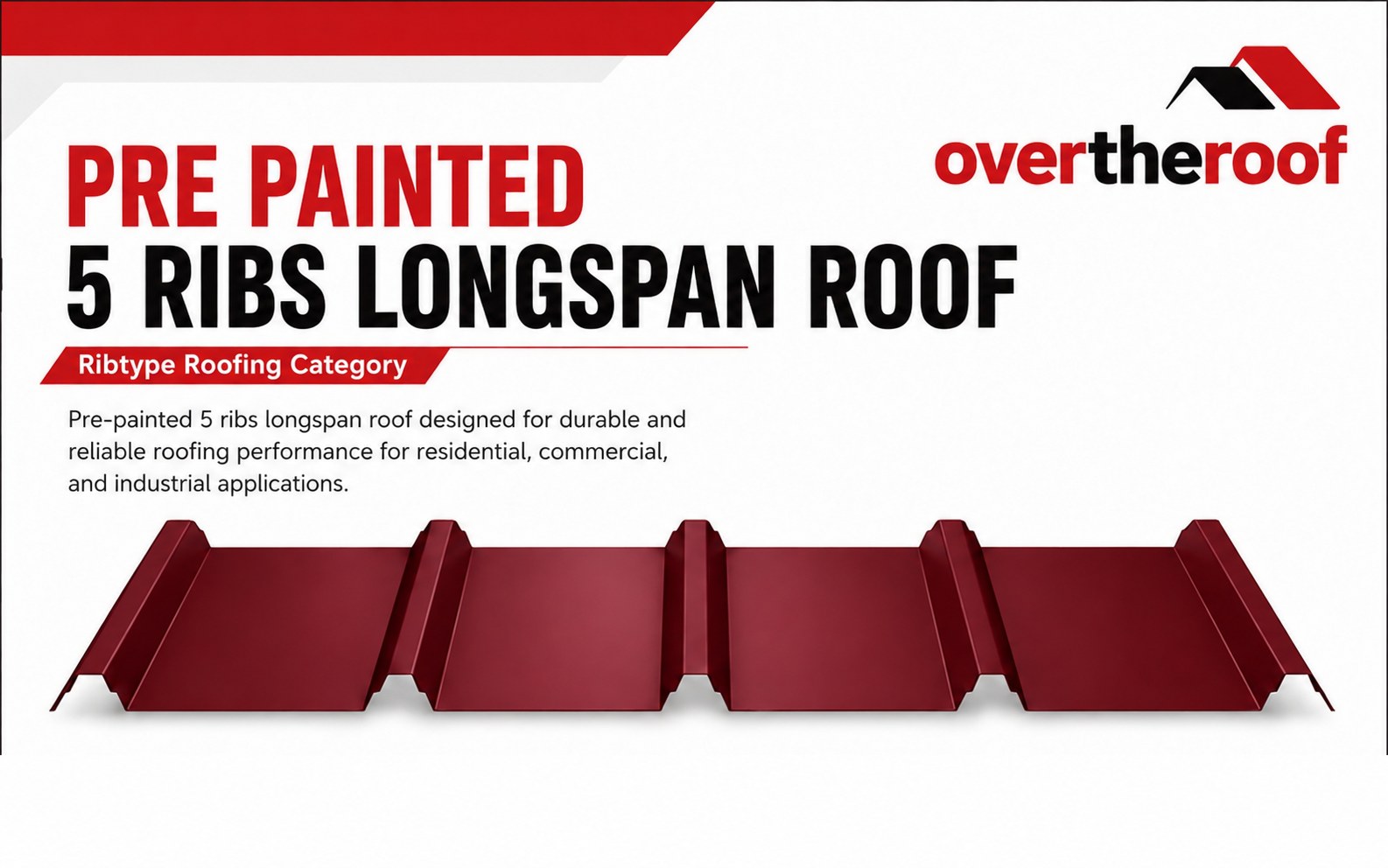

5 ribs, 6 ribs, Eight ribs, Twin ribs, 4 rib, High rib, Corrugated, Curved Ribtype
PRODUCT HIGHLIGHTS – RIBTYPE ROOFING SYSTEM
• Effective Width: 1.07 meters – wider coverage for faster installation and fewer overlaps
• Corrosion-Resistant Zinc Coating – protects steel core and minimizes premature rusting
• Multi-Layer Paint Protection System
– 15–20 microns Top Coat (UV and weather protection)
– 5–8 microns Primer Coat (enhances adhesion and corrosion resistance)
– 8 microns Back Coat (additional protection underside)
• Multiple Thickness Options Available
– 0.35mm
– 0.40mm Commercial
– 0.40mm Standard
– 0.50mm
– 0.60mm
• High Structural Strength – ribbed profile improves rigidity and load resistance
• Excellent Waterproof Performance – designed for efficient water runoff and leak prevention
• Lightweight Material – reduces structural load and framing cost
• Long Service Life – typically lasts 15–25 years depending on thickness and environment
• Low Maintenance Requirement – durable coating resists fading, cracking, and corrosion
• Wide Application – suitable for residential, commercial, warehouse, and industrial roofing systems
PRODUCT HIGHLIGHTS – CORRUGATED ROOFING SYSTEM
• Effective Width: 1.07 meters – provides efficient coverage and faster installation
• Protective Zinc Coating – minimizes premature rusting and ensures long-term corrosion resistance
• Multi-Layer Paint Protection System
– 15–20 microns Top Coat for UV and weather protection
– 5–8 microns Primer Coat for improved adhesion and durability
– 8 microns Back Coat for underside protection
• Available Thickness Options
– 0.35mm
– 0.40mm Commercial
– 0.40mm Standard
– 0.50mm
– 0.60mm
• Excellent Water Drainage Performance – corrugated profile allows efficient water runoff
• High Durability and Flexibility – resistant to cracking, deformation, and environmental stress
• Lightweight and Easy Installation – reduces structural load and installation time
• Low Maintenance Requirement – long-lasting protective coating
• Service Life of 15–25 Years under normal environmental conditions
• Wide Application – ideal for residential houses, warehouses, commercial buildings, and industrial facilities
