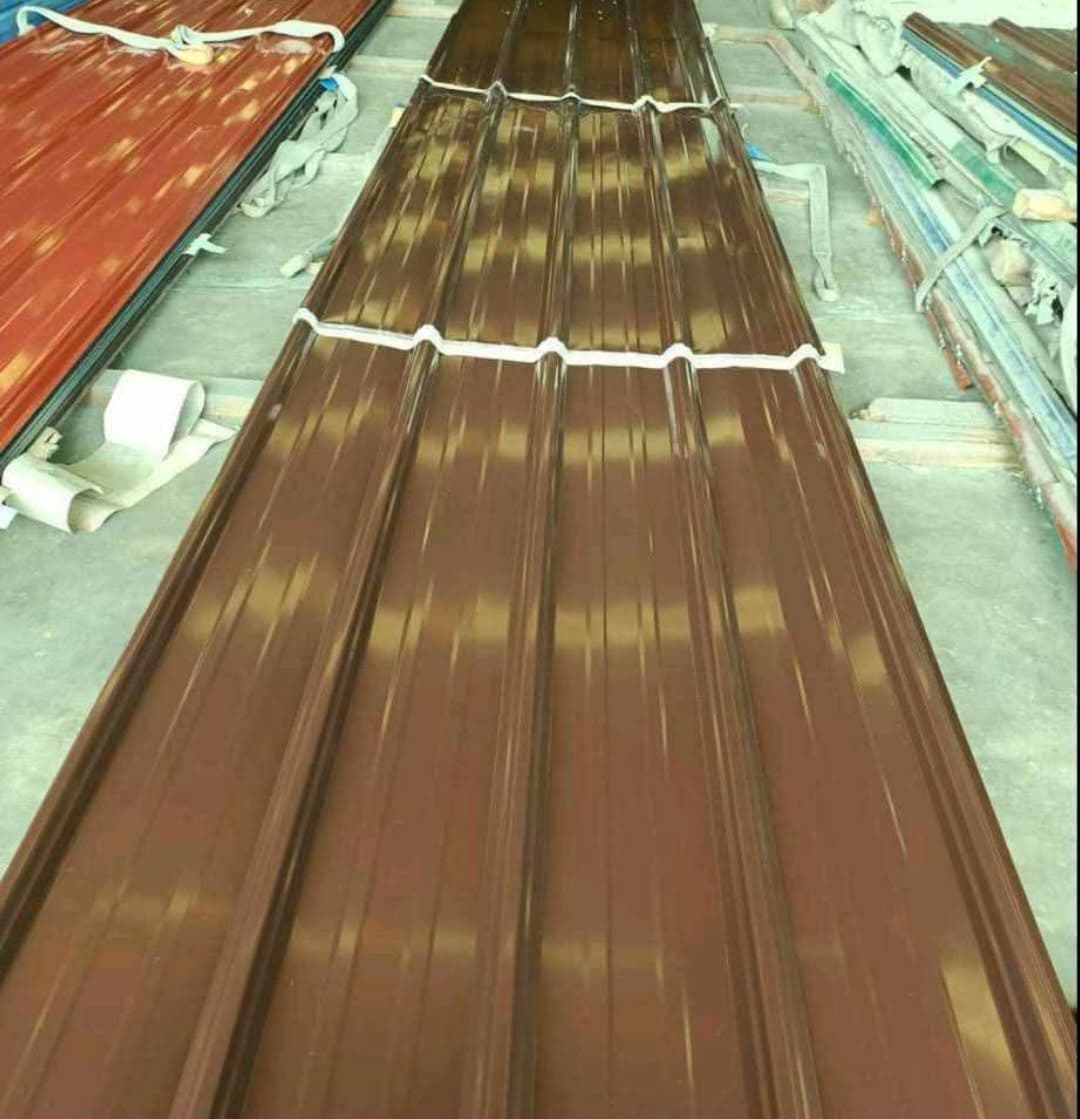

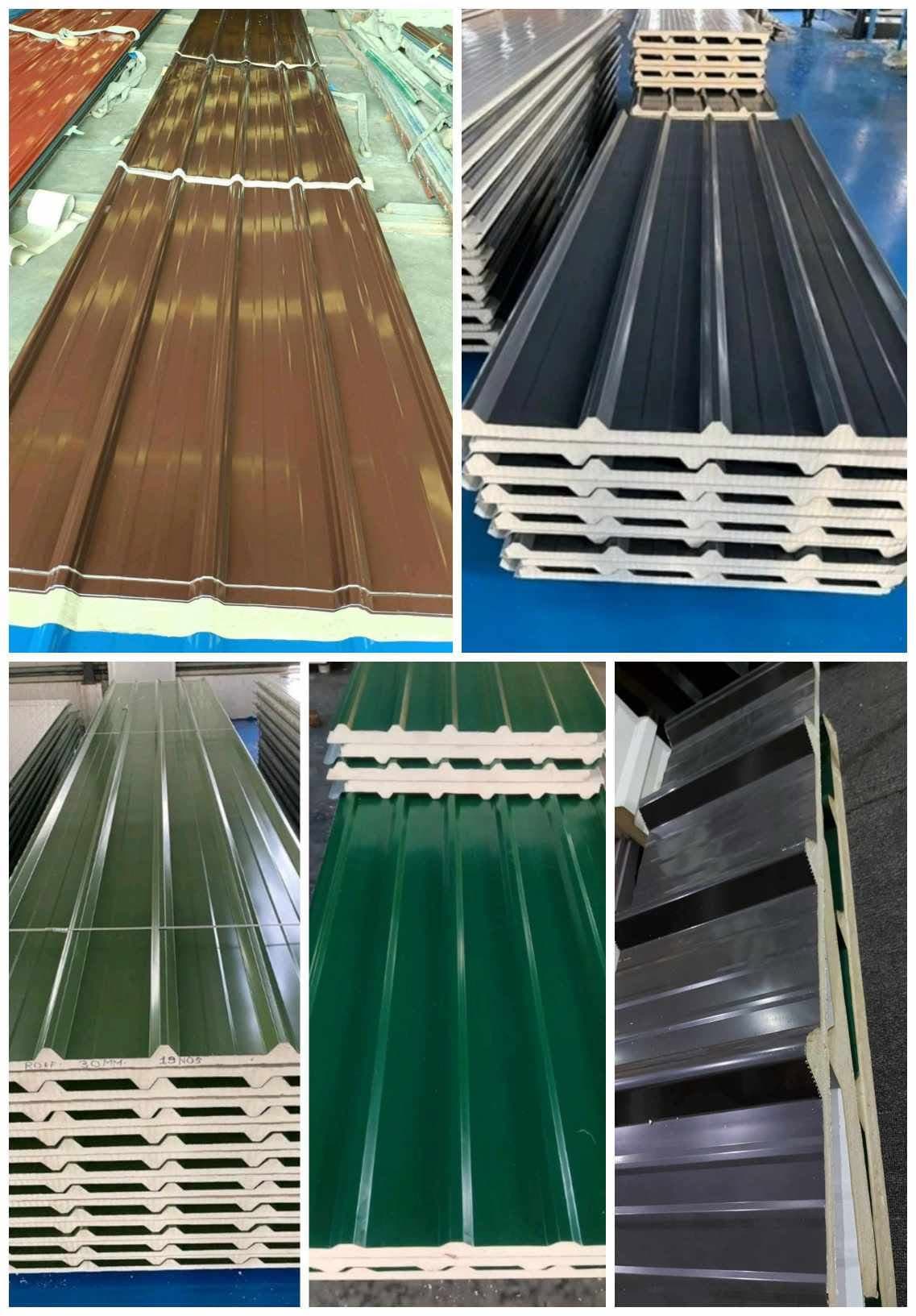

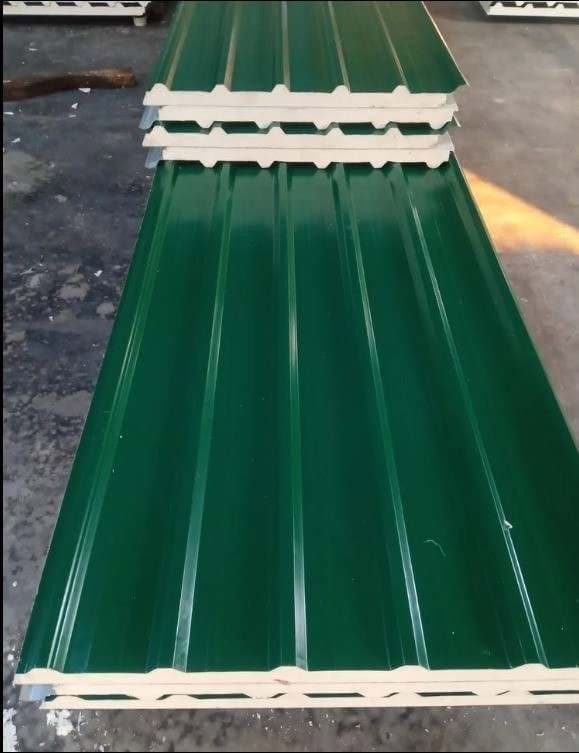

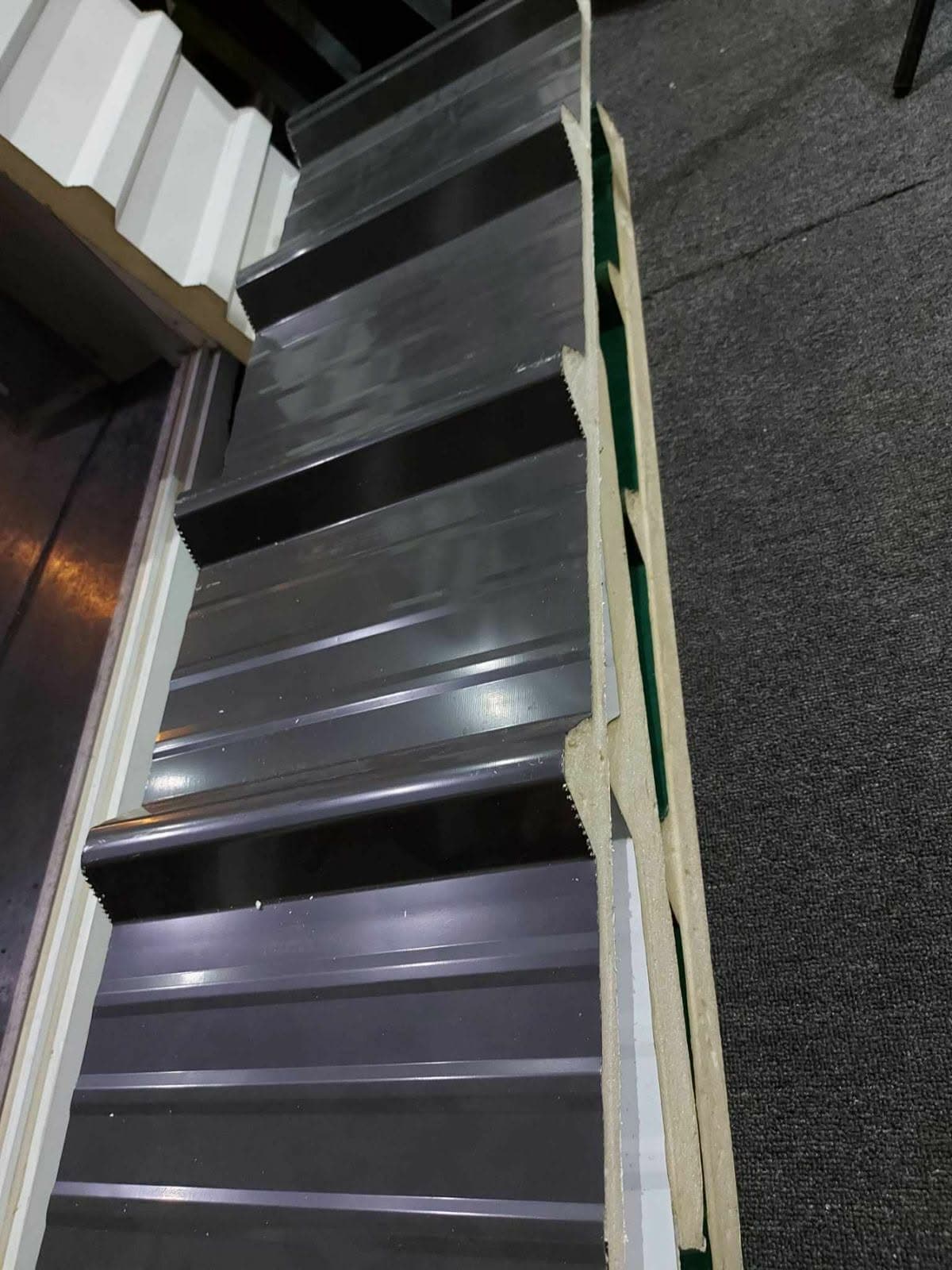

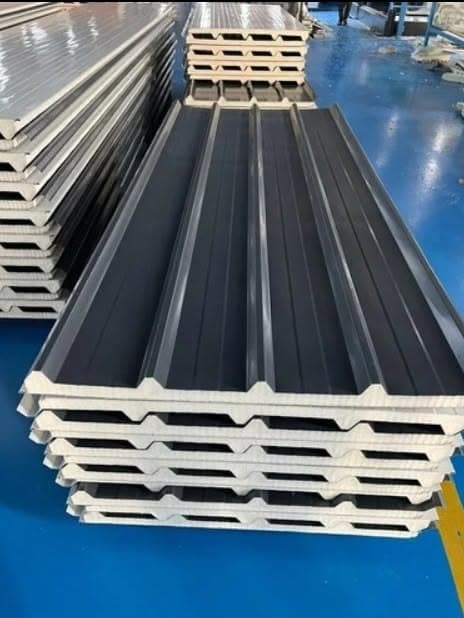

Sandwich Insulated Roof Panels
Roof and insulation in one panel - pre-painted rib-type metal skin bonded to a rigid PU foam core (20mm, 35mm, or 50mm). Keeps interiors noticeably cooler, dampens rain noise, and installs faster than roofing with separate insulation.
Sandwich Insulated Roof Panels combine a pre-painted rib-type metal roofing skin with a factory-bonded rigid polyurethane (PU) foam core, delivering roofing and insulation in a single panel. PU foam is one of the most efficient insulation materials available, so even a thin core significantly reduces the heat that passes through a metal roof - keeping interiors cooler and cutting air-conditioning load in the Philippine climate.
Available with 20mm, 35mm, or 50mm PU foam cores and pre-painted metal skins in 0.40mm, 0.50mm, and 0.60mm thickness, the panels can be matched to residential, commercial, industrial, and cold-storage applications. The foam core also acts as a sound dampener, noticeably reducing rain and outdoor noise compared to bare metal roofing.
Because the roof sheet and insulation go up in one pass, installation is faster and cheaper than installing roofing, foam, and a separate ceiling layer - the smooth foam underside can even serve as a clean, finished ceiling for warehouses, workshops, and extensions. The rigid core adds stiffness and impact resistance, and the closed-cell foam does not absorb moisture, helping prevent condensation drips on the underside of the roof.
✔ Superior Heat Insulation – rigid PU foam core blocks heat transfer far better than bare metal roofing, keeping interiors cooler and lowering aircon costs
✔ 2-in-1 Roof + Insulation – roofing sheet and insulation install in one pass, saving on labor, framing, and a separate ceiling
✔ Quieter Interiors – the foam core absorbs rain and outdoor noise for a more comfortable space
✔ Clean Finished Underside – smooth foam underside can double as a neat ceiling for warehouses, workshops, carports, and extensions
✔ Flexible Specifications – PU foam core in 20mm, 35mm, or 50mm; pre-painted metal skin in 0.40mm, 0.50mm, or 0.60mm
✔ Strong & Moisture-Resistant – bonded panel construction adds rigidity, and closed-cell foam resists moisture and condensation drips
